Packwell Solutions

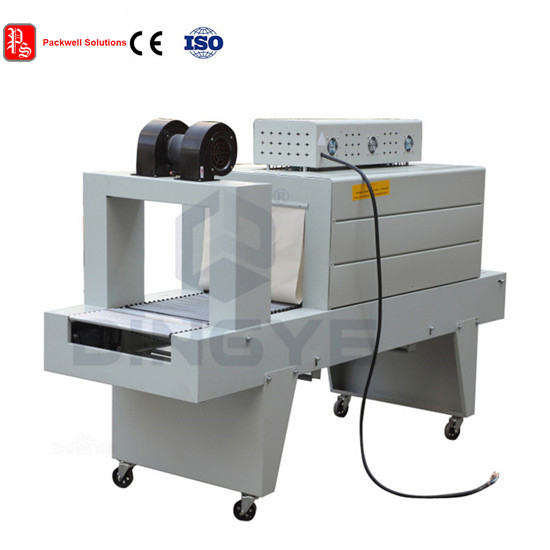

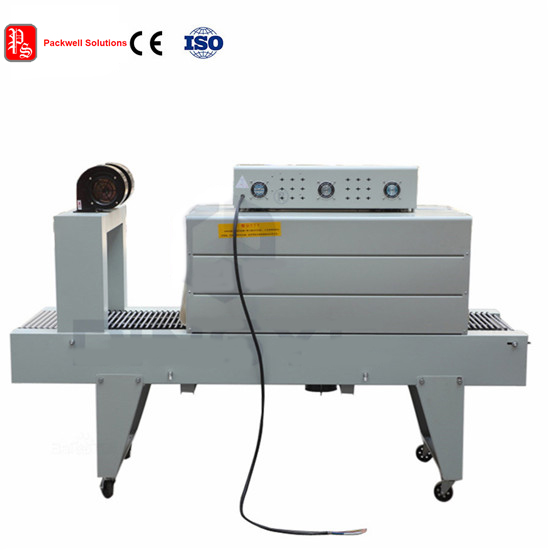

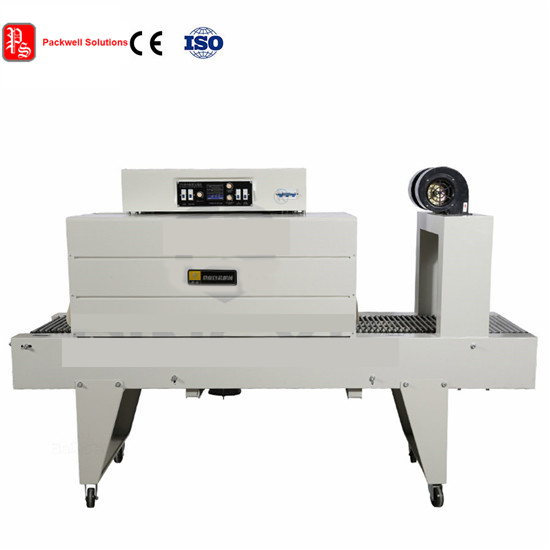

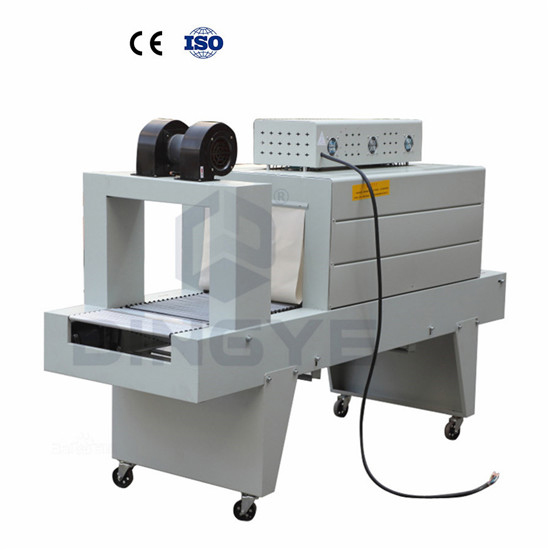

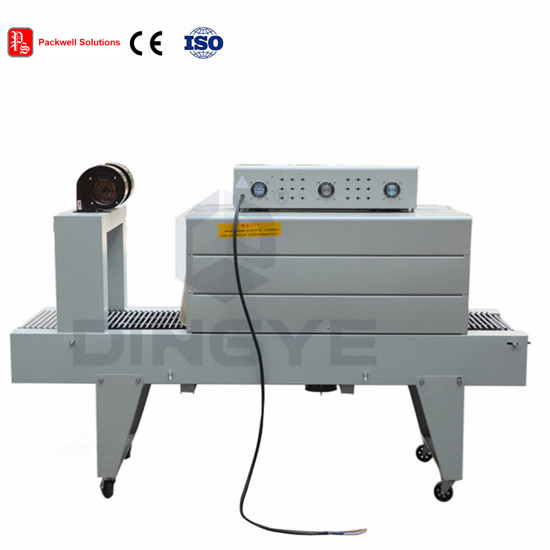

The BSE series PE film shrink tunnel is suitable for all kinds of shrink films. The machine adopts digital temperature controller, which makes operation easier. There are shrinking tubes on the top, bottom and sides of the shrinking room. The powerful fan inside the tunnel makes the air heating equally. The speed of the conveyer is adjustable. And you can choose roller or net conveyor as your request.

Specification

Model	BSE4535	BSE5038	BSE6040
Power supply	3phase 220V,380-460V/50-60Hz
Heater power	18KW Adjustable	19KW Adjustable	20KW Adjustable
Conveyer speed	0-10m/minute
Tunnel size(L*W*H)	1200*450*350MM	1200*500*380MM	1800*600*400MM
Conveyer loading	25KG MAX.	25KG MAX.	25KG MAX.
Machine size	2200*730*1440MM	2200*780*1470MM	2800*880*1570MM
Machine weight	220KGS	250KGS	285KGS
Shrink film	PE,POF,PVC,PP	PE,POF,PVC,PP	PE,POF,PVC,PP
