Product name : Steam label shrink packing machine
Item : ZBS83A
 :
 :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Summarize:

Steam label shrink machine is our new-developed shrink machine. It adopts steam as heat source, and has features of high speed, even heating, no wrinkle, adjustable power and perfect shrink effect. Machine body applies S/S material, addtionally heat-preservation layer is provided. This not only saves energy, but accords to international security standard. Whole machine adopts water-proof design, and         S/S water receiver is mounted in the bottom in order to collect condensed water. It is easy to operate and maintain, and widely applied in the industry of mineral water, pure water, carbonated drink and tea etc.

Machine adopts steam-shrink model with S/S structure. It has advantage of high efficiency in energy-consumption, simple operation and easy adjustment. Achieve perfect shrink effect with lowest power consumption. 5-section design in shrink tunnel, independent temp. control in each section, as well as height adjust and distance adjust between objects. Any shape bottle is able to reach nice-looking shrink effect after simple adjust.

Specification:

model

ZBS83A

Capacity

5000~15000B/H

voltage

220V/50HZ

Steam Pressure

0.1Mpa

Power

150W

Steam Consumption

24Kg/H

Weight

150Kg

Shrink Temperature

75~85℃

tunnel size

1350*180*380mm

Dimension (L*W*H)

2400*430*1350mm

(Note: other special size is able to be customized)

Steam Generator

Specification:

Power

12/24Kw

Electricity

380V/3PH

Pressure

0.4MPa

Volume

27L

Steam production

16/32kg/H

Weight

91Kg



Related Products :
Thermal Shrink Packaging Machine
BS-G450
Thermal Shrink Packaging Machine
Label shrink packager
BSS-1538C
Label shrink packager
Thermal shrink tunnel
BS-D4520
Thermal shrink tunnel
DZBS1135 steam label shrink machine
DZBS1135
DZBS1135 steam label shrink machine
Label shrink packaging machine
BSS-1538B
Label shrink packaging machine
Thermal shrink packaging machine
BS-A450
Thermal shrink packaging machine

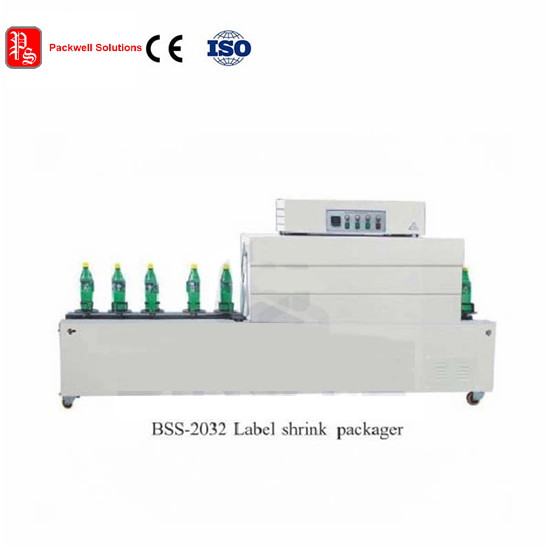

Label shrink packager
