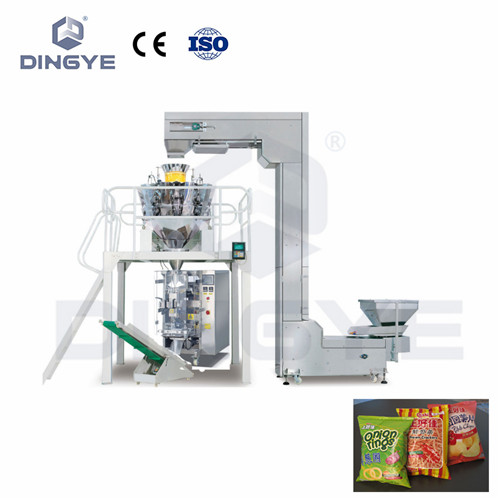

Product name : Multi-head Weigher & FL420 Automatic Vertical Packager Machine
 :
 :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

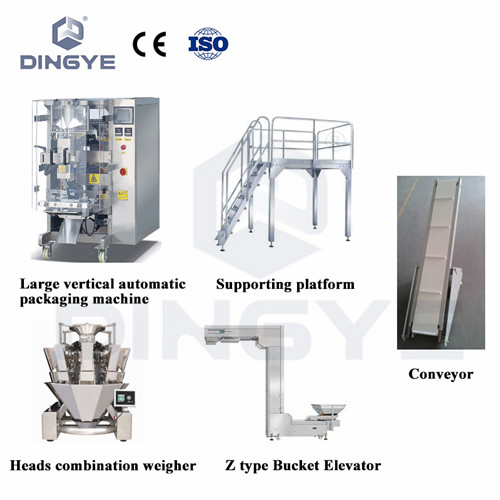

Large vertical automatic packaging machine

Features

* Low cost high gain, high speed and efficiency.

* Famous brand PLC control system, large touch screen, convenient to operate;

* Film drawing down system and horizontal sealing controlled by servo motor;

* minimize the loss with complete automatic warn protection function;

* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
* the way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.



Technical parameter

 Items

 Content

Capacity

50-70bag/min

Bag size

(L)60-300mm (W)90-200mm

Bag type

Pillow-type bag, standing bag, punch

Range of measuring



Max packaging film width

420mm

Thickness of film

0.04-0.09mm

Air consumption

0.8Mpa 0.5cmb/min

Main power/voltage

2.2KW/220V 50Hz

Dimension

1530×970×1600mm

The weight of switchboard

450kg



Heads combination weigher

Features

Load cell infeed detection, more compatible for harsh working environment (dusty).

Automatic frequency control function to improve the passing rate.

Independently adjustable amplitude, more user friendly.

Staggered dumping mechanism to prevent material blockage.

Multi-language operating interface.

Optional devices: Mouse, USB and SD card compatible 7”  touch screen

High grade (IP65) waterproof and dustproof design, more durable in wet and dusty working environment.

Instant display of the weight inside each hopper.

Application Range:

Cereal, pasta; pet food; frozen food (frozen dumping), all type of granular products (peanuts, pistachio), confectionary, fresh products (lettuce leaf), bakery food (biscuits).



Non-food applications (screws, bolts).

Weigh range

5-1000g

Accuracy

0.2-1g

Max speed

70 wpm

Weigh volume

1.3&2.5L

Hopper No.

10

Control panel

7 inch touch screen

Driving Device

Stepper motor

Power supply

AC 110/220±5V, 50/60 Hz

Power

1 KW

Size

1037×1037×1331(mm)

Weight

340kg



 Z type Bucket Elevator

 Features



The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc.For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.

Specification

The highness of lifting

3m-10m

Speed of lifting

0-17m/minute

Lifting quantity

5.5cubic meter/hour

Power

750W

Voltage

380v



 Supporting platform

The supporting platform is solid will not affect the measurement accuracy of the combination weigher.

In addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.

 Specification

The size of the supporting platform is according to the type of the machines.

Conveyor

 Features

The machine can send the packed finished bag to after-package detecting device or packing platform.

Specification

Lifting height

0.6m-0.8m

Lifting capacity

1 cmb/hour

Feeding speed

30m\minute

Dimension

2110×340×500mm

Voltage

220V/45W
