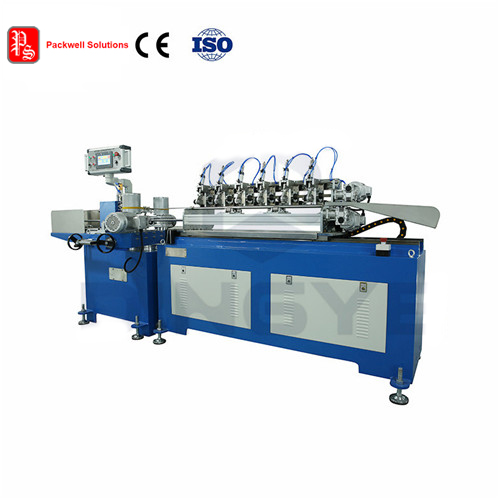

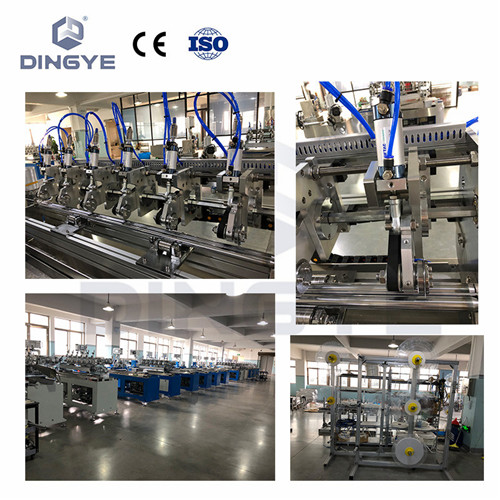

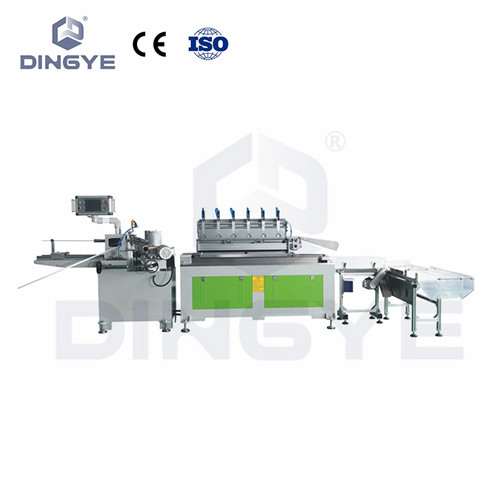

 1. Multi-blade cutting system & spiral rolling mechanism

Adopted man-machine control interface, touch screen parameters setting, easy for operating. Controlled by encoder, driven by servomotor. Automatic and high efficiency. 150-225 pcs straws /min.

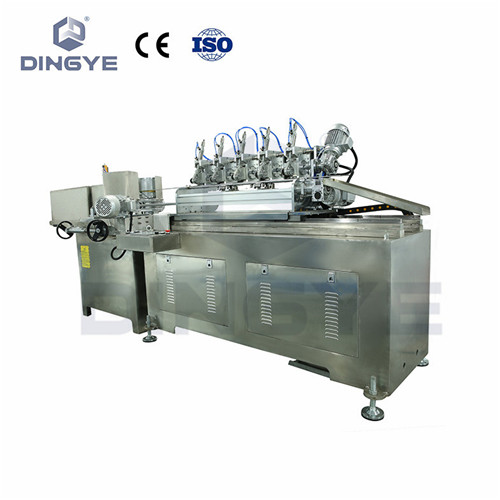

Winding by belt and tension device adjusted by handle wheel. 3 options for machine body: Blue painting, white painting and stainless steel. Thermal/heat treatment frame to remove internal stressfor longer service life.

2.Gluing Mechanism

Choose gluing single side or double sides. Automatically lift up and drop off. The drinking straws are glued evenly and sticked firmly. Synchronous sensor for interruption and block protection.

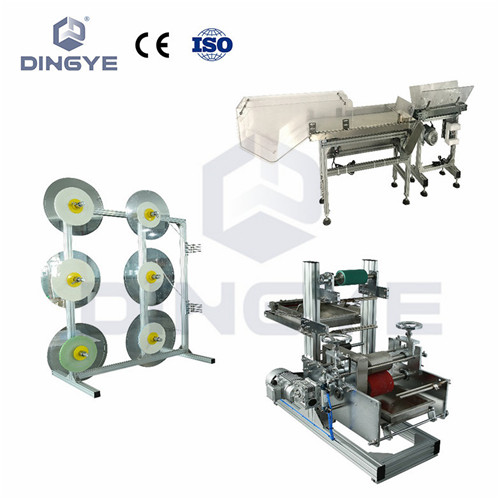

3. Straw Collector:

Pick up the straws automatically and row them tidily at the container. Speed and height controllable.

4. Paper Roller Bracket:

The paper roller can be easily installed on the T-bar and rotate flexibly. According to the requirement of paper layers, you can put 2~5 paper rollers. New design of constant tension rewinding roller shaft for better winding effect.

Specification:

` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` ` `

Paper Layer	2-5 layers
Inner diameter	4-12mm
Thickness	0.3-1mm
Speed	0-55m/min
Cutting system	Program control multi knife (5-7)
Cutting length	120-1050mm
Sychronous tracking and cutting	Servo motor synchronous tracking cutting
Way of Gluing	Single/ Double side
Fixed length way	Encoder
Operater	1-2 person
Speed control	Pole free speed regulation
Voltage	380V/3phase/50HZ
Paper stand	3 layers
Glue System	Three layer spray type
Fuselage parts	Medium carbon iron plate
Main part Dimension	5600*1600*1750mm
Overall Dimension	8000*6000*1800mm
Weight	1200kgs
