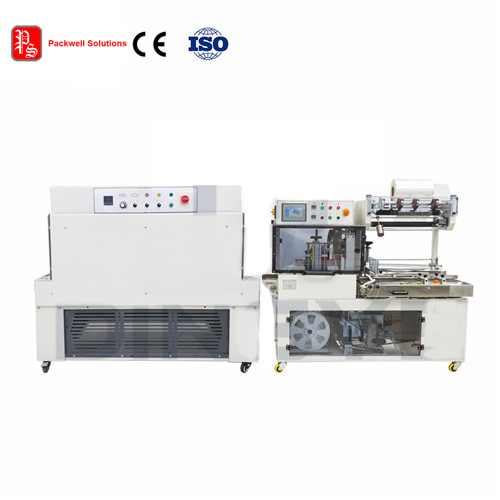

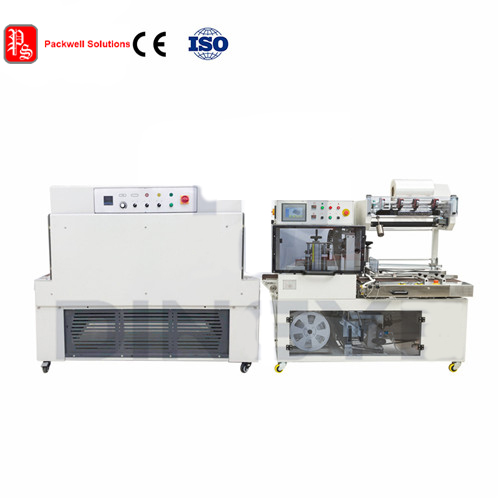

Product name : DQL6025G Automatic Side Sealer & DSA6030
Item : DQL6025
 :
 :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Details:

DQL6025G automatic L-type sealer characteristic

1. The sealing knife adopts copper alloy sprayed with Teflon, it won't stick film, sealing fastness, without smoke, non-pollution. Horizontal and vertical sealing knife adopt whole connecting without gap, the film won't break. Sealing frame adopts high quality alloy steel, the sealing quality is stable, frame difficult to be damaged.

2. The machine has entire automatic system, it equipped with sensors can reach high speed automatic working.

3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.

4. It can be connected with production

5. It has protection function to avoid sealing product wrong and ensure the safety of operator

DSC6030A shrink tunnel characteristic

1. It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make

 temperature system more accurate, prolong the working life.

2. It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult

 abraded (you can choose net type conveyor)

3. It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.

4. Inside wall adopts stainless steel, it has fast temperature transfer, even heating, low energy consumption, long working life characteristics.

Application

This machine is widely used in foodstuff, drinks, printing, pharmaceutical, floor, hardware and other industries shrink packaging. It is suit for POF Machine Spare Parts .

Specification

Model

DQL6025G

DSA6030

Max packing size(㎜)

L:∞,W+H600H220mm

W600×H300

Max sealing size(㎜)

W600

/

PowerKW

3.0KW

26.4KW

Capacity

0-25 pcs/min

0-16 m/min

Voltage

AC220V 50/60HZ

220V/380V,5060HZ

Shrink tunnel(mm)

/

L1500xW600XH300

Loading weight

/

20kg

Sealing temperature

Relation with thickness of plastic film.Normally,it is 140℃—180℃ for horizontal sealing and 260℃—300℃ for side sealing

 Thickness of film(mm)

0.012-0.05

Air pressure(Kg/cm2) )

5-6

Packing material

POF

Machine weight()

500

*

Machine size(㎜)

L2600×W1200×H1700

L1810xW977xH1565
