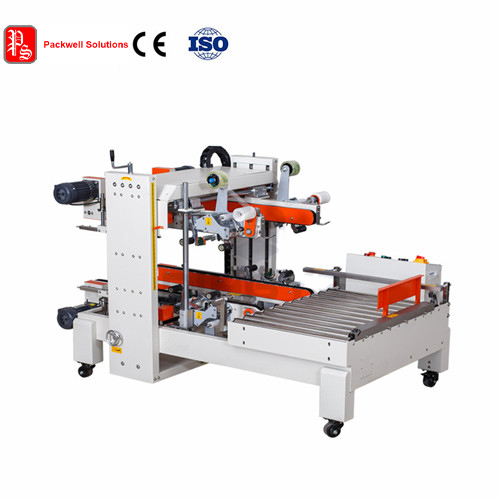

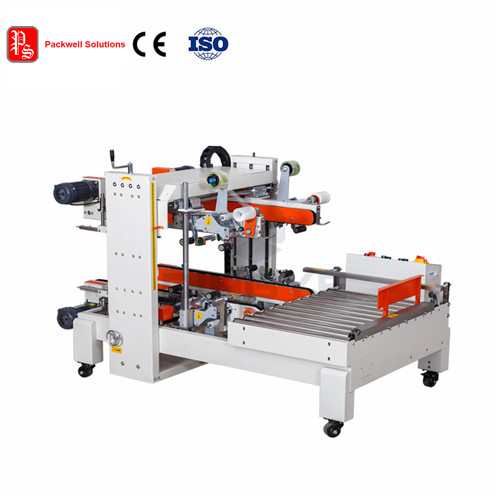

Product name : DFXS-7050 Automatic carton edges sealer
Item : DFXS-7050
 :
 :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

DFXS-7050  carton edges sealer is used for sealing the edges of top and bottom flaps. It can be equipped into automatic carton packaging system.
Specification:
MODEL DFXS-7050
VOLTAGE(V/HZ) AC 110V/220V,50~60HZ
POWER(W) 720
GAS PRESSURE(MPa) 0.55~0.6

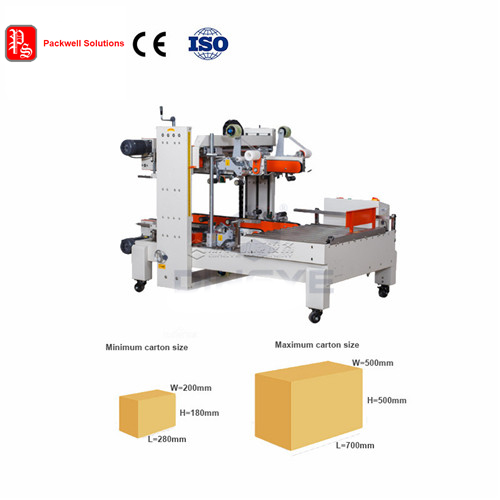

APPLICABLE CARTON SIZE(mm) L:260-700mm,W:200-500mm,H:180-500mm
HEIGHT OF WROKING TABLE(mm) 550-630mm
TAPING SPEED(m/min) 20
ADHESIVE TAPE USED BOPP,PVC,KRAFT PAPER TAPE
WIDTH OF ADHESIVE TAPE(mm) 48mm,60mm,72mm
WEIGHT OF PACKAGE(kg) 2.5-3.0
EXTERNAL DIMENSION(L*W*H) 1955*1340*1330mm
NET WEIGHT(kg) 400
