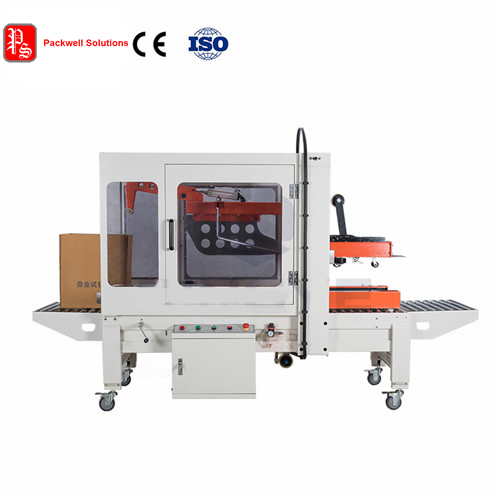

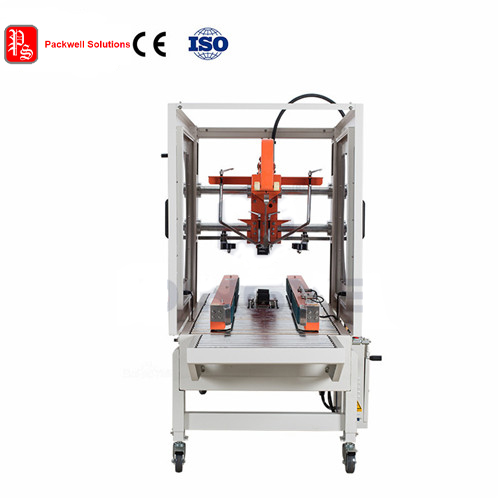

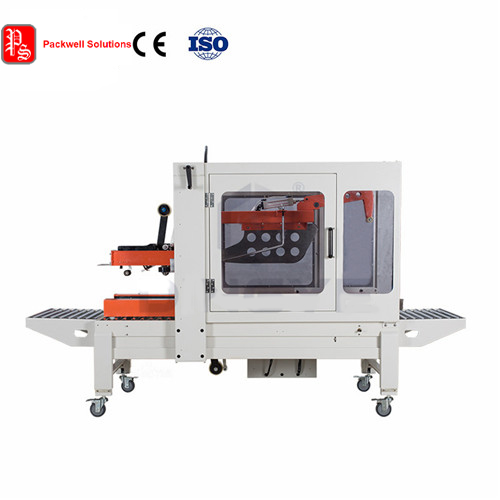

Product name : Automatic Carton Sealer (Auto Fold)

Item : FXZ5050

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Summary:

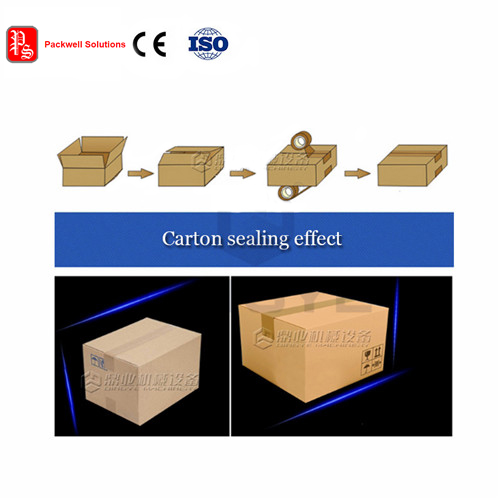

The machine is mainly useful for the sealing and packing of cartons, which can be single-unit operation or also equipped into production line. It is widely used in the fields of electrical domestic appliance, foodstuffs, general merchandise, medicine and chemical industry. The top, side and back flap of the carton can be folded automatically, with high speed&smooth.

New Features:

1).Whole new design cutting combined parts .More easy operation,nice sound of tape running.

2).Wider feeding belt,more loading weight,less wastage.

Options

1) .Tape printer

2) .Carton printer

3). tape width parts.

Specification:

Model	FXZ5050
Power supply	AC220V/50，AC110V/60Hz 420W
Max. packing dimension	500(W)* 500(H)* 600(L)mm
Min. packing dimension	200(W)160 (H)200 (L)mm
Air Pressure	2/3L， 5Kg/cm²
Working table height:	600-700mm
speed	18m/min
Width of adhesive tape	48mm. 60mm. 75mm
Machine size	2836×1010×（1600-1700）MM
