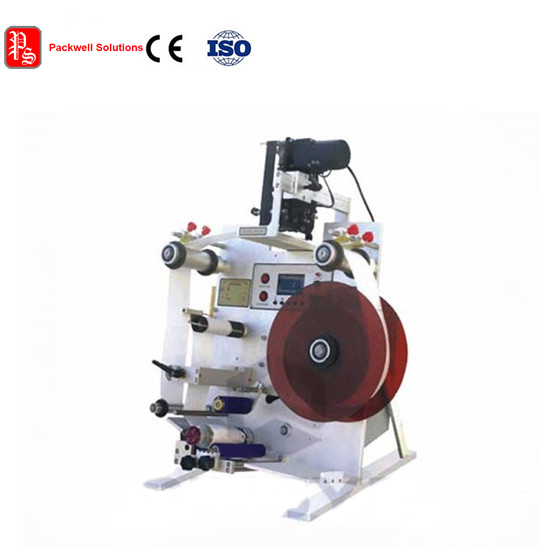

○ It is applied to the labeling of round bottle containers with small quantities but many varieties, such as glass bottles , plastic bottles, iron can and so on.
○ Adopt imported electromagnetic clutch with high precision.
○ High class aluminium alloy anodic treatment has long service life.
○ Adopt imported factory electric engine to ensure high load and long period operation.
○ All parts and standardized components are carefully made by adopting stainless steel.
○ With PLC control panel, liquid crystal display has the sense of the times.
○ Imported label inspection optical coupler can ensure high precision.
|
Model
|
SL-120
|
|
Electric source voltage
|
AC200V/50HZ
|
|
Power
|
150W
|
|
Label dimension
|
Maximum120(W)×400(L)mm
Maximum10(W)×30(L)mm
|
|
Round bottle dimension
|
Maximum Φ125mm，Min Φ20mm
|
|
Label inner core dimension
|
Internal diameterΦ75mm，external diameter Φ300mm
|
|
External dimension
|
580×680×860mm
|
|
Net weight
|
45kg（including code machine）
|
|
