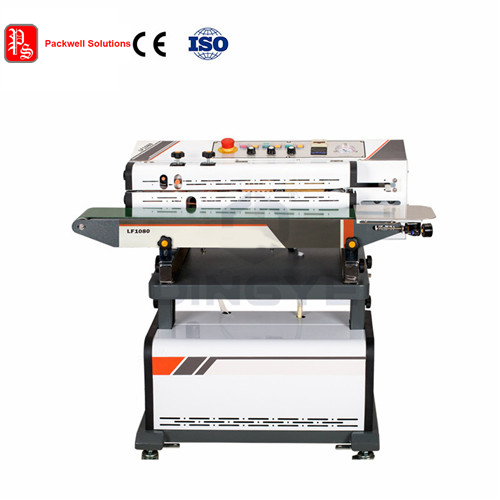

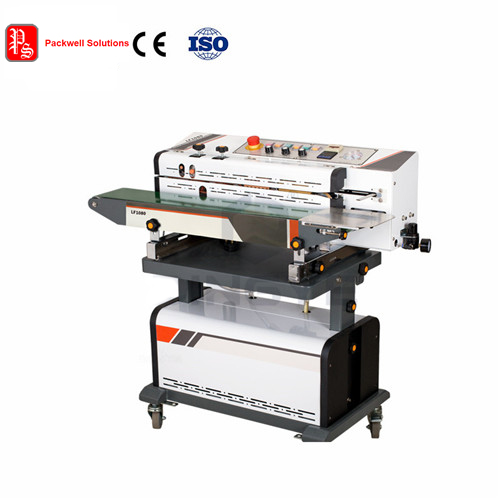

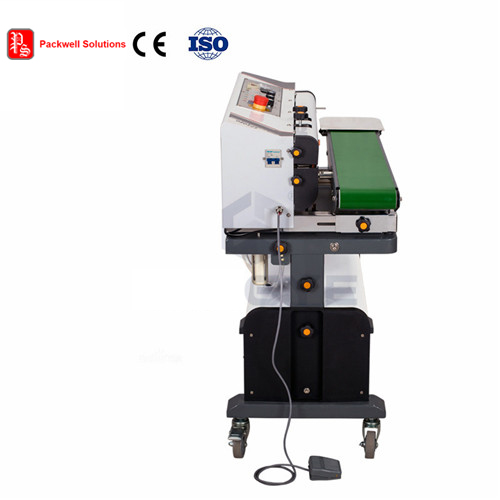

Product name : Continuous Air Suction Band Sealer (Optional: Gas Flushing)
Item : LF1080B
 :
 :
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:


Features:

This machine is based on the widely absorb essence of similar foreign products and vacuum machine .according to the latest requirement of market to design on new model with send, vacuum, inflatable (such as nitrogen or other gases), seal, code, in one set, continuous sealing and packing machine.

This machine with Simple and novel structure, beautiful appearance, complete function, high degree of automation, can greatly reduce the labor intensity of the operator.

 1.Thicker and wider heating block & cooling block to ensure the quick and perfect sealing

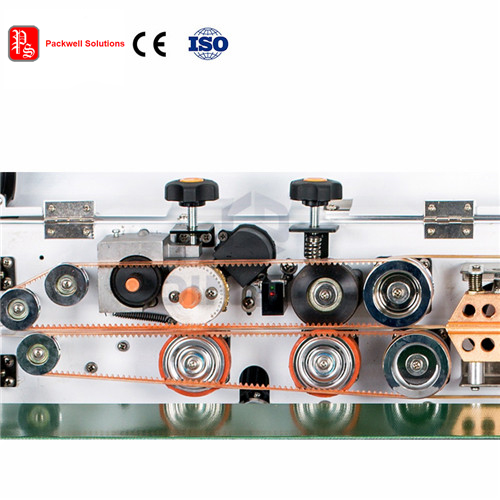

2.High precision processed driving wheel, much beautiful

3.High-quality solid rubber tensioning knob, wearproof

4.Unibody gear box, flank fixed, more steady

5.High-quality polyformaldehyde gear with high- strength injection molding, Running more smooth and low noise

6.Patent to replace the sealing belt, which is easy and convenient

7.Shield on the machine to ensure the safety of the operator

8.Conveyor can be easily adjusted up, down, ahead or back according to the size of the products

9.Elegant panel, easy operation, variable speed conveyor

10.Can with the gas filling ,the filling time is adjustable

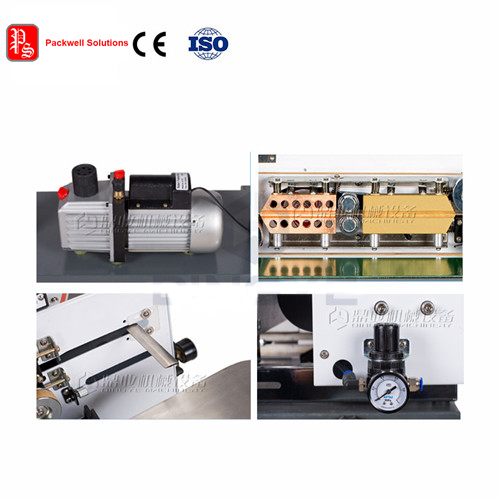

 11.The new choice of the vacuum pump to ensure the high degree of vacuum

12.“AirTac” filter can prevent the products (such as small granule ,liquid ) into the vacuum pump

Model

LF1080B

Voltage

110/220V/50~60Hz

Function

Air Suction, Gas Flushing & Bag Sealing

Powder

Motor power(50W)

Total=1405W

Fan(15W)

Sealing Power:220Wx2

Vacuum pump:900W

Sealing speed(m/min)

0~12

Sealing Width(mm)

6~12

Temperature range

0~300

Max. thickness of single  layer film  (mm)

≤0.08

Max Loading of conveyor(Kg)

≤3

Machine size(L*W*H)mm

1020*480*(925+140 adjustable)

Weight (Kg)

84Kg
